Z Axis Manual Linear Stage , Optical Sliding Table Travel 25mm PT-DZ100/150
PT-DZ100 and PT-DZ150 are rack and pinion type manual translation tables launched by PDV. The main material of this series of products is made of high-strength aluminum alloy Z, the surface process adopts black oxidation treatment, and the dovetail auxiliary guide rail is used to guide, so that its load capacity is greatly enhanced. It is driven by helical gear and rack, and the adjustment speed is fast. Its side has scale and locking function, with good locking effect and high stability. The mounting holes with standard hole spacing are distributed on the table and base, which is convenient for installation and combination. It can form a multi-dimensional adjustment frame or form a multi-dimensional adjustment with other series of products.
Product features
Gear rack transmission, fast adjustment speed;
Dovetail auxiliary guide rail, large stroke, strong load capacity;
It has locking function, good locking effect and strong stability;
With a scale, it is fast and convenient to read data;
Mounting holes with standard hole spacing are distributed on the table and base to facilitate installation and combination;
It can be used alone, or form a multi-dimensional adjustment frame or form a multi-dimensional adjustment table with other series of products.
Product parameters:
| Model Number | PT-DZ100 | PT-DZ150 |
| Actuator Type | Rack and Pinion |
| Operating Position | Side |
| Platform | 25×42mm |
| Travel Range | ±25mm |
| Travel Guide | Dovetail Slide Bearing |
| Load Capacity | 1.5kgf(14.7N) |
| Straightness | 30μm |
| Weight | 0.16kg | 0.18kg |
| Surface Material | Aluminum Alloy-Black-anodized |

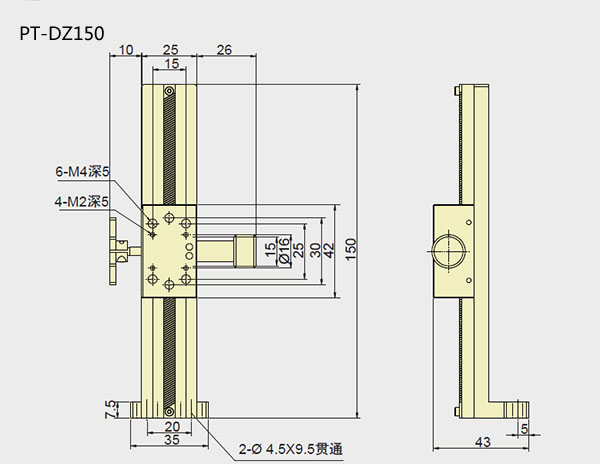

Product Dimension Map
Characteristics and application scope of dovetail groove slide
characteristic:
1. Gear rail and gear type: suitable for long stroke sliding and installation in loading mode. Small, coarse micro motion, large and other models are suitable for high frequency, rapid movement and large stroke.
2. Feed screw type: screw driving platform screw has portable standard type and slider type suitable for built-in mode installation. The drive adjustment mode is screw mode. It is suitable for occasions with low frequency and only minor adjustment.
Application scope:
This kind of slide can be used in optical instrument devices, measuring devices, inspection devices, semiconductor manufacturing devices, testing machines, microscopes, handling printing machines and other equipment.
|
|
Z Axis Manual Linear Stage , Optical Sliding Table Travel 25mm PT - DZ100 / 150 Images
|
